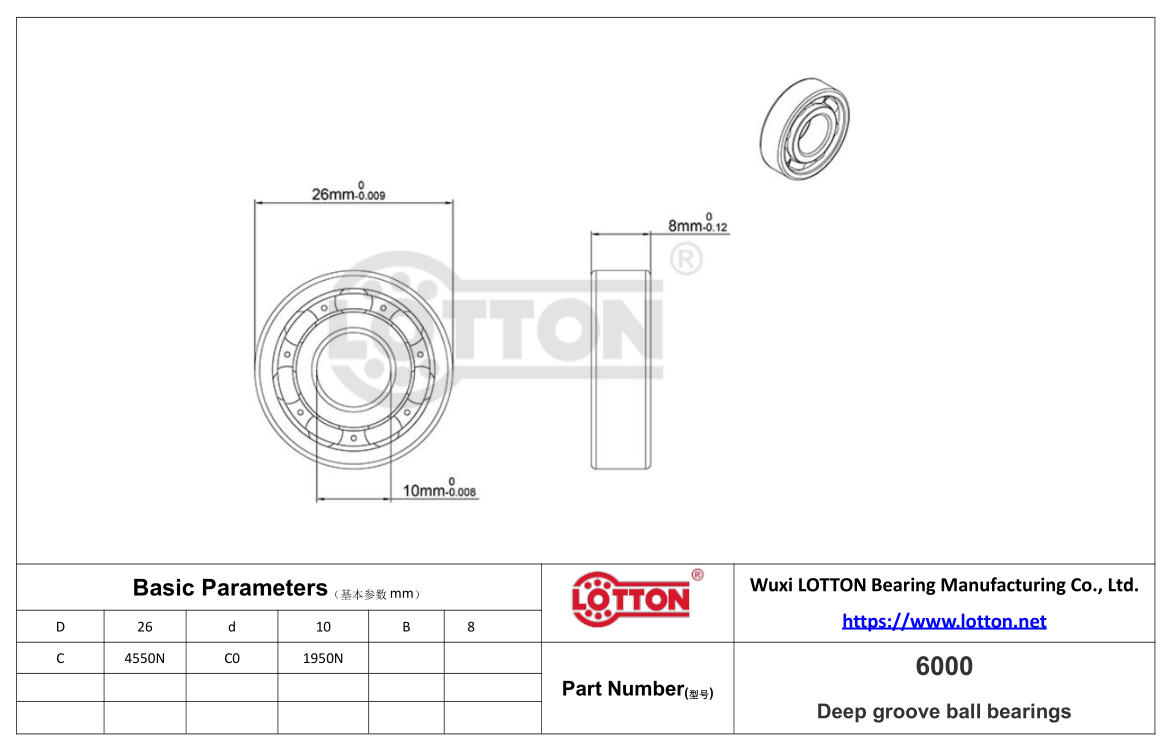

| Product Number | 6000 |
| System of Measurement | Metric |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | open |
| bore Dia | 10mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 26mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 8mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 4550 N |
| Static Radial Load | 1950N |
| Max Speed | 31000 rpm |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| Ball Dia | 4.762mm |
| Ball Qty | 7 |
| Weight | 19g |
