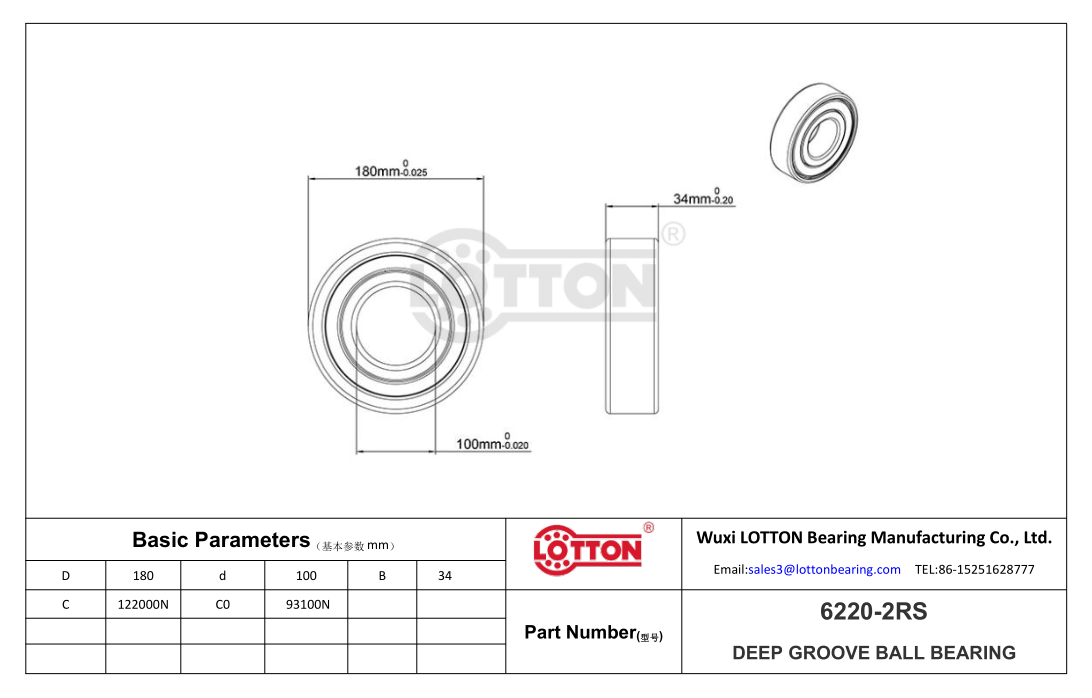

| Product Number | 6220-2RS |
| System of Measurement | Metric |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | sealed |
| Bore Dia | 100mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 180 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width | 34 mm |
| Width Tolerance | -0.200mm to 0 |
| Ring Material | 52100 chrome steel |
| Ball Material | 52100 chrome steel |
| Cage Material | 300 series stainless steel |
| Dynamic Radial Load | 122000 N |
| Static Radial Load | 93100 N |
| Max Speed (X1000 rpm) | 2.4 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.012mm to 0.036mm |
| RoHS | Compliant |
| Weight | 3120g |
