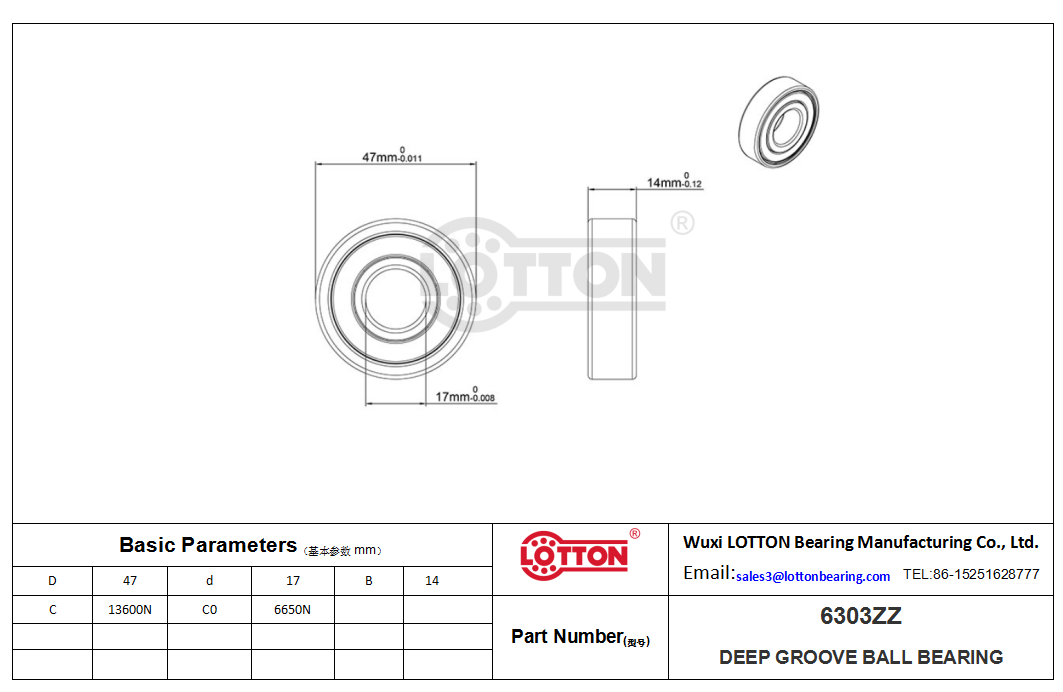

| Product Number | 6303ZZ |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | shielded |
| Bore Dia | 17 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 47 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 14 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 13600 N |
| Static Radial Load | 6650 N |
| Max Speed (X1000 rpm) | 15 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 115 g |
