6701 bearing

Product Number 6701
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial Contact
Construction Single Row
Seal Type Open
Bore Dia 12 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 18 mm
Outer Dia Tolerance -0.008mm to 0
Width 4 mm
Width Tolerance -0.120mmto 0
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material 300 Series Stainless Steel
Dynamic Radial Load 928 N
Static Radial Load 532N
Max Speed (X1000 rpm) 15
Lubrication Required
Temperature Range -30"Cto 110°C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.003mm to 0.018mm
RoHS Compliant
REACH Compliant
Weight 3.1g
PRINT

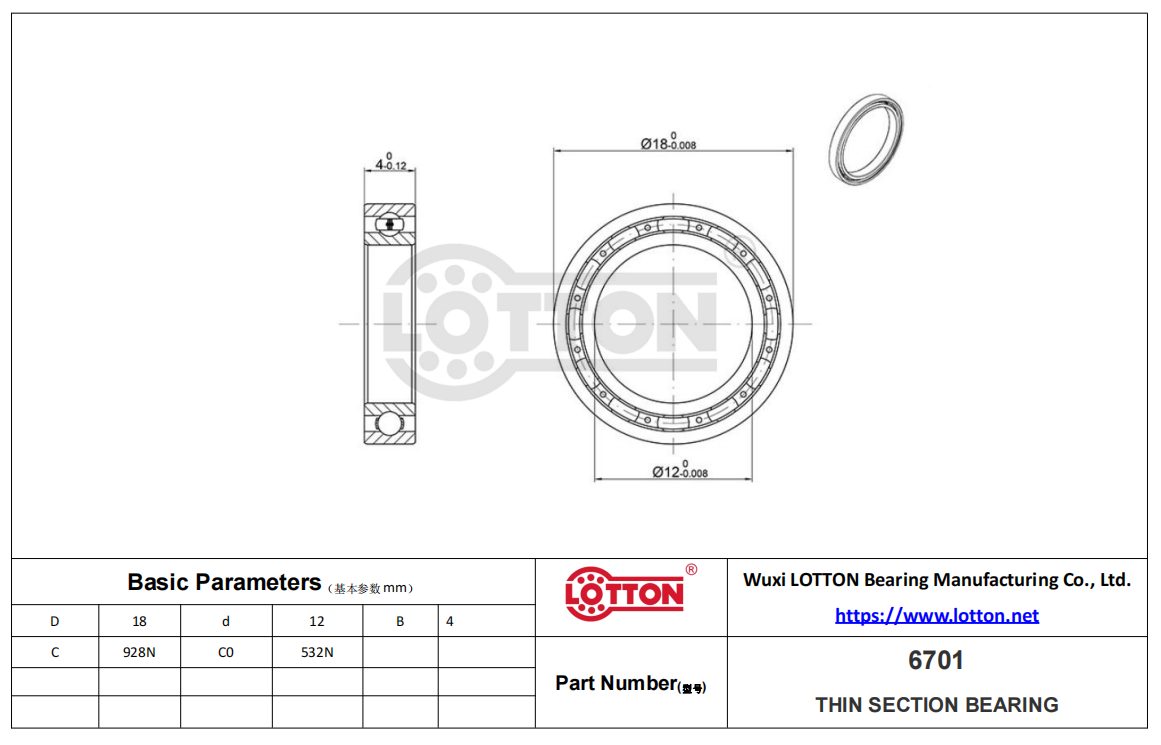

DETAILED DRAWING DOWNLOAD
