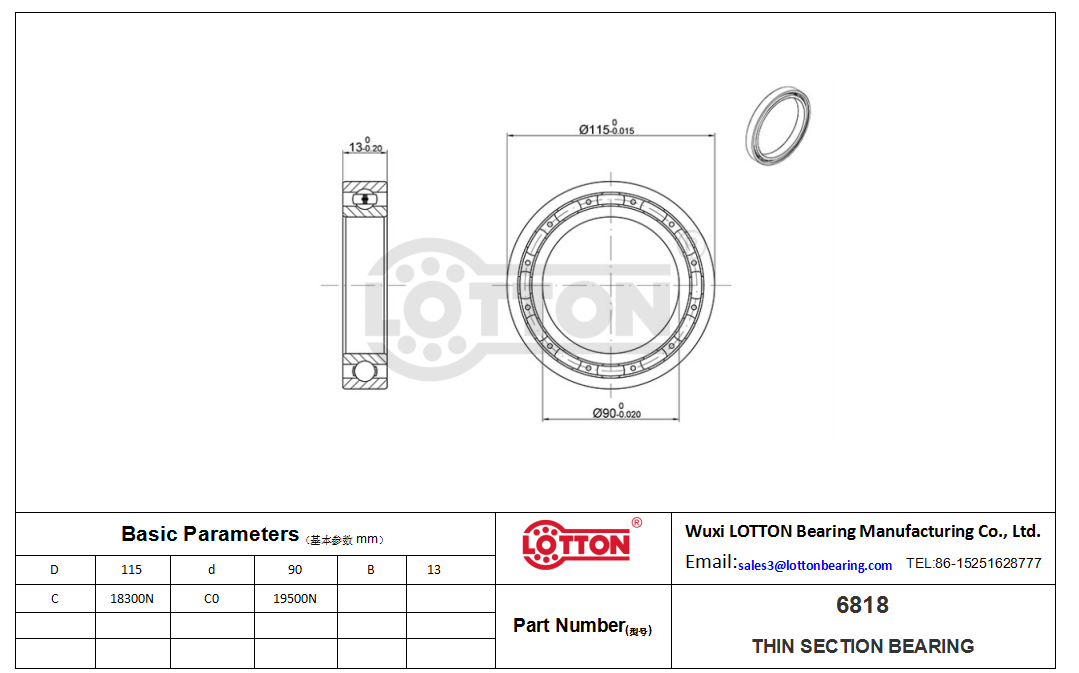

| Product Number | 6818 |
| System of Measurement | Metric |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | open |
| Bore Dia | 90 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 115 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 13 mm |
| Width Tolerance | -0.200mm to 0 |
| Ring Material | 52100 chrome steel |
| Ball Material | 52100 chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 18300 N |
| Static Radial Load | 19500 N |
| Max Speed (X1000 rpm) | 6.2 |
| Lubrication | Required |
| Temperature Range | -30°C to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.012mm to 0.036mm |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 279 g |
