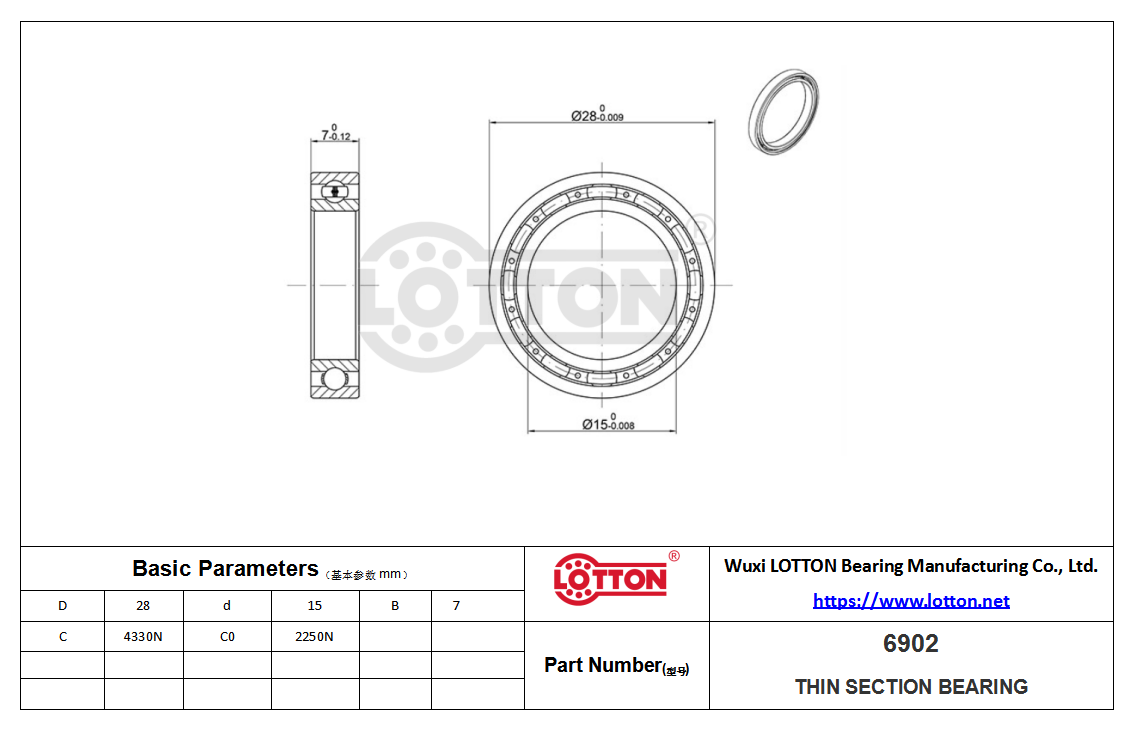

| Product Number | 6902 |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial Contact |
| Construction | Single Row |
| Seal Type | open |
| Bore Dia | 15 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 28 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 7 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 4330 N |
| Static Radial Load | 2250 N |
| Max Speed (X1000 rpm) | 29 |
| Lubrication | Required |
| Temperature Range | -30°C to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 9g |
