S16100 bearing

Product Number S16100
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Bore Dia 10 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 28 mm
Outer Dia Tolerance -0.009mm to 0
Width 8 mm
Width Tolerance -0.120mm to 0
Ring Material 440C Stainless Steel
Ball Material 440C Stainless Steel
Cage Material 300 Series Stainless Steel
Dynamic Radial Load 4140N
Static Radial Load 1800 N
Max Speed (X1000 rpm) 22.5
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.003mm to 0.018mm
RoHS Compliant
REACH Compliant
Weight 22 g
PRINT

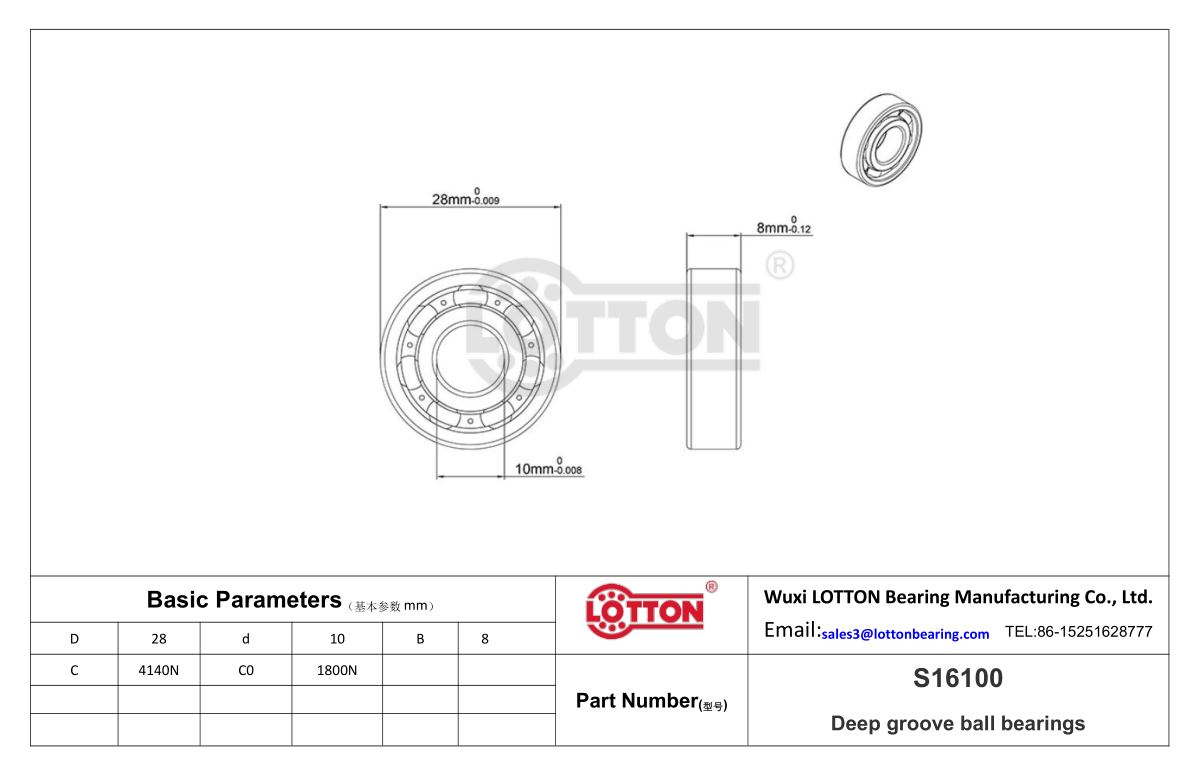

DETAILED DRAWING DOWNLOAD
