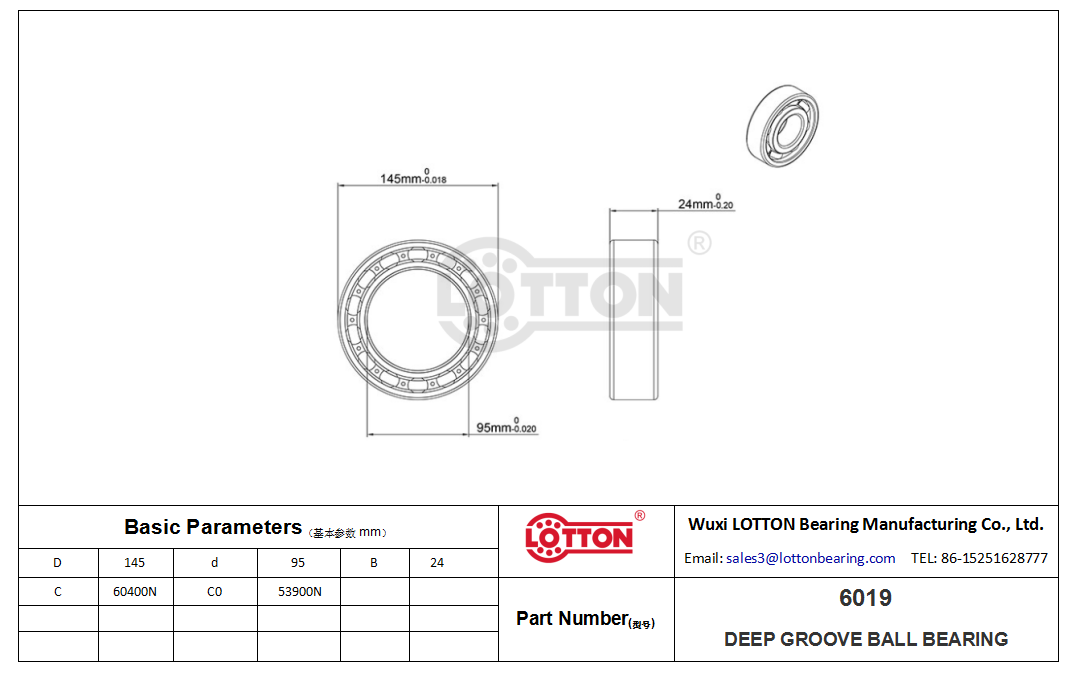

| Product Number | S6019 |
| System of Measurement | Metric |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | open |
| Bore Dia | 95 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 145mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width | 24 mm |
| Width Tolerance | -0.200mm to 0 |
| Ring Material | 440C Stainless steel |
| Ball Material | 440C Stainless steel |
| Cage Material | 300 series stainless steel |
| Dynamic Radial Load | 54360 N |
| Static Radial Load | 48510 N |
| Max Speed (X1000 rpm) | 4.05 |
| Lubrication | Required |
| Temperature Range | -30°C to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.012mm to 0.036mm |
| RoHS | Compliant |
| Weight | 1200 g |
