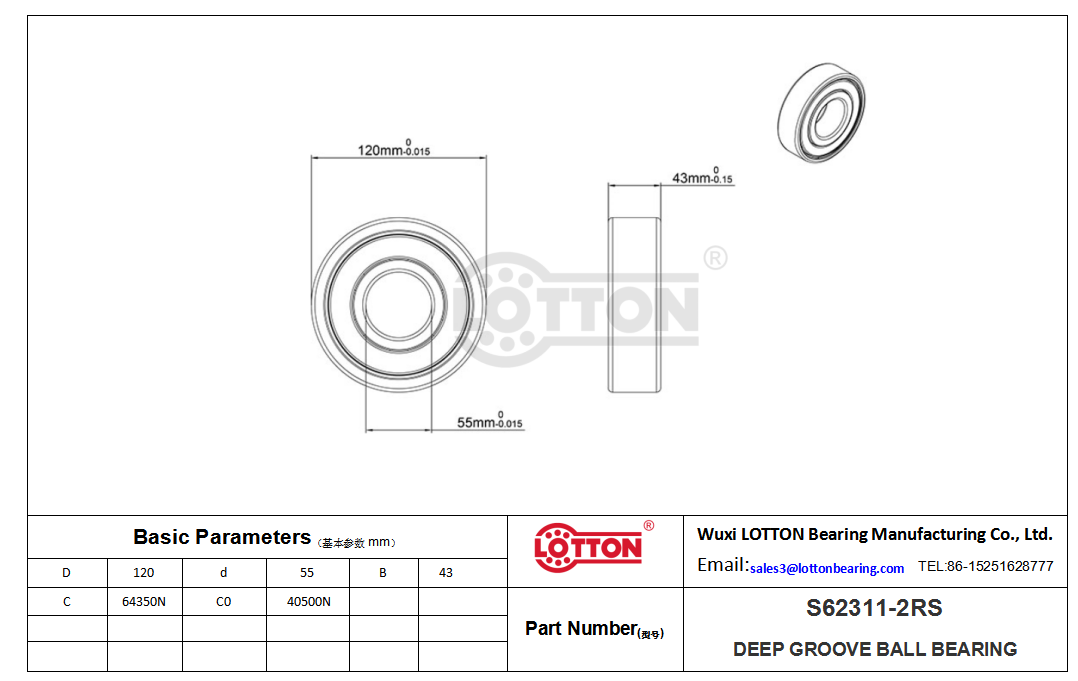

| Product Number | S62311-2RS |
| System of Measurement | Metric |
| Bearing Type | ball |
| For Load Direction | radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Bore Dia | 55 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 120 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 43 mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 64350 N |
| Static Radial Load | 40500 N |
| Max Speed (X1000 rpm) | 7.74 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.008mm to 0.028mm |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 2000 g |
