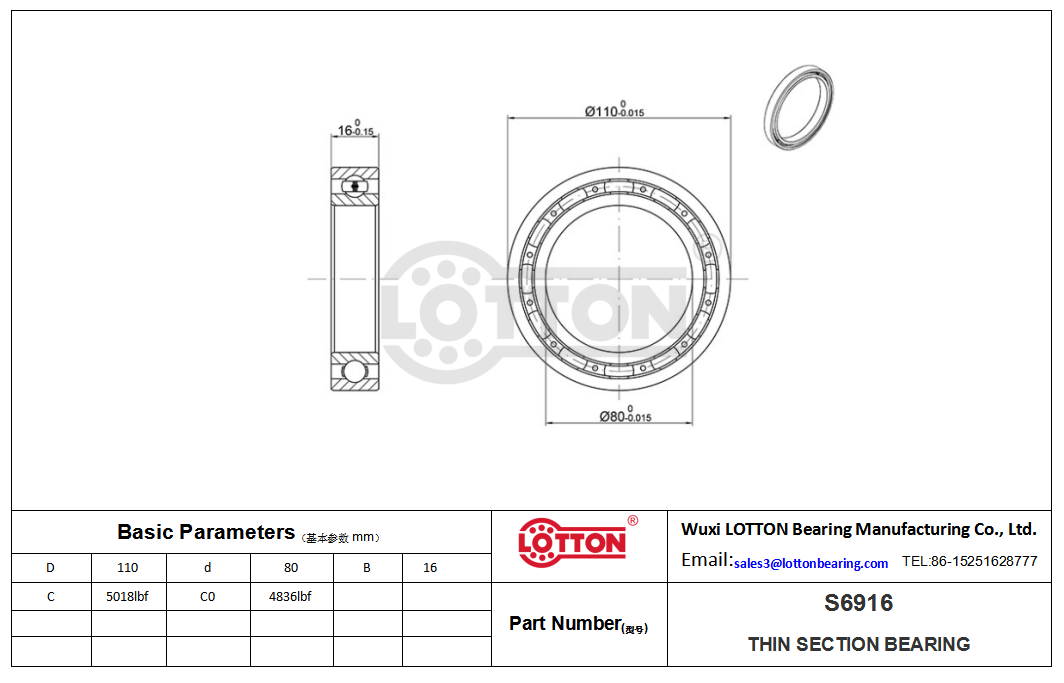

Product Number | S6916 |
System of Measurement | Metric |
Bearing Type | Ball |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | open |
Bore Dia | 80 mm |
Bore Dia Tolerance | -0.015mm to 0 |
Outer Dia | 110 mm |
Outer Dia Tolerance | -0.015mm to 0 |
Width | 16mm |
Width Tolerance | -0.150mm to 0 |
Ring Material | 440C Stainless Steel |
Ball Material | 440C Stainless Steel |
Cage Material | 440C Stainless Steel |
Dynamic Radial Load | 5018 lbf |
Static Radial Load | 4836 lbf |
Max Speed (X1000 rpm) | 5.1 |
Lubrication | Required |
Temperature Range | -86 to 230 °F |
ABEC Rating | ABEC-1 |
Radial Clearance Trade No. | C0 |
Radial Clearance | 0.01mm to 0.03mm |
RoHS | Compliant |
REACH | Compliant |
Weight | 382 g |
