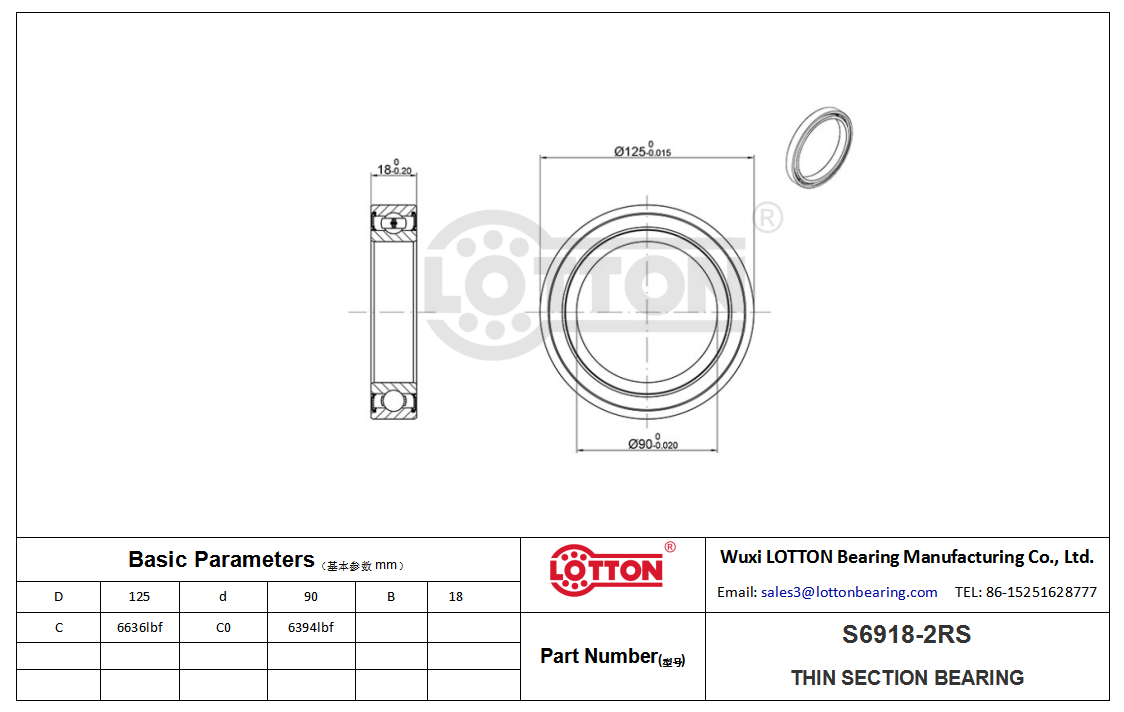

| Product Number | S6918-2RS |
| System of Measurement | Metric |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Bore Dia | 90 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 125 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width | 18 mm |
| Width Tolerance | -0.200mm to 0 |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 440C stainless steel |
| Dynamic Radial Load | 6636 lbf |
| Static Radial Load | 6394 lbf |
| Max Speed (X1000 rpm) | 4.6 |
| Lubrication | Required |
| Temperature Range | -86 to 230 °F |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.012mm to 0.036mm |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 565 g |
